IT for Dental Practices: Imaging, Diary, and a Chair That Cannot Wait

A patient is in the chair and the dentist clicks to open last year’s bitewings. The screen shows a progress bar. The nurse fills the gap with small talk and the appointment runs four minutes over.
Nothing has broken. The images are on the practice server, the imaging application is running, and the network is up. One link in that chain is slow, and the appointment absorbs the delay.
A dental practice runs on a different shape of technology from an office. The equipment that decides whether the day works sits inside the treatment room, and it fails while somebody is lying under it.
Treat the following as illustrative. A Christchurch practice runs three surgeries with eleven staff and sees around sixty patients a day.
Study sets take about twenty-five seconds to open at the chair instead of about three, roughly eighteen times per surgery per day. Across three surgeries that is close to seventy-five hours a year, and valuing a third of it as bookable chair time at $240 an hour puts it near $6,000.
The practice server or the imaging application stops twice a year, half a day at a time across all three surgeries. That is twenty-four chair hours at $240, or about $5,800. The practice manager then spends three hours a week on chores a supported setup would absorb, which at a loaded $42 an hour is another $6,600.
Added together that is about $18,400 a year. None of it appears as a technology line in the accounts, because it is spread across chair time and management time.
One boundary before we start. Health information obligations apply to a dental practice the way they apply to any health agency, and healthcare IT across the sector covers that ground. What follows is about the treatment room, the imaging behind it and the counter out front.

What Does IT for Dental Practices Cover?

IT for dental practices covers the practice management system that holds the diary and the clinical record, the imaging pipeline running from sensor to chairside screen, the network and storage both depend on, and the claim and payment path at the counter. Office email sits a long way down that list.
The practice management system, usually shortened to PMS, holds the diary, the clinical notes, the recall list and the account. Every other system in the building either writes to it or reads from it, which is why a slow PMS feels like a slow practice.
The imaging pipeline is longer than owners expect. A sensor captures, a driver hands the image to the imaging application, the application writes it to storage, and a viewer opens it on the screen above the chair. Any one of those handovers can be the slow one.

Which systems have to be working before a patient sits down?

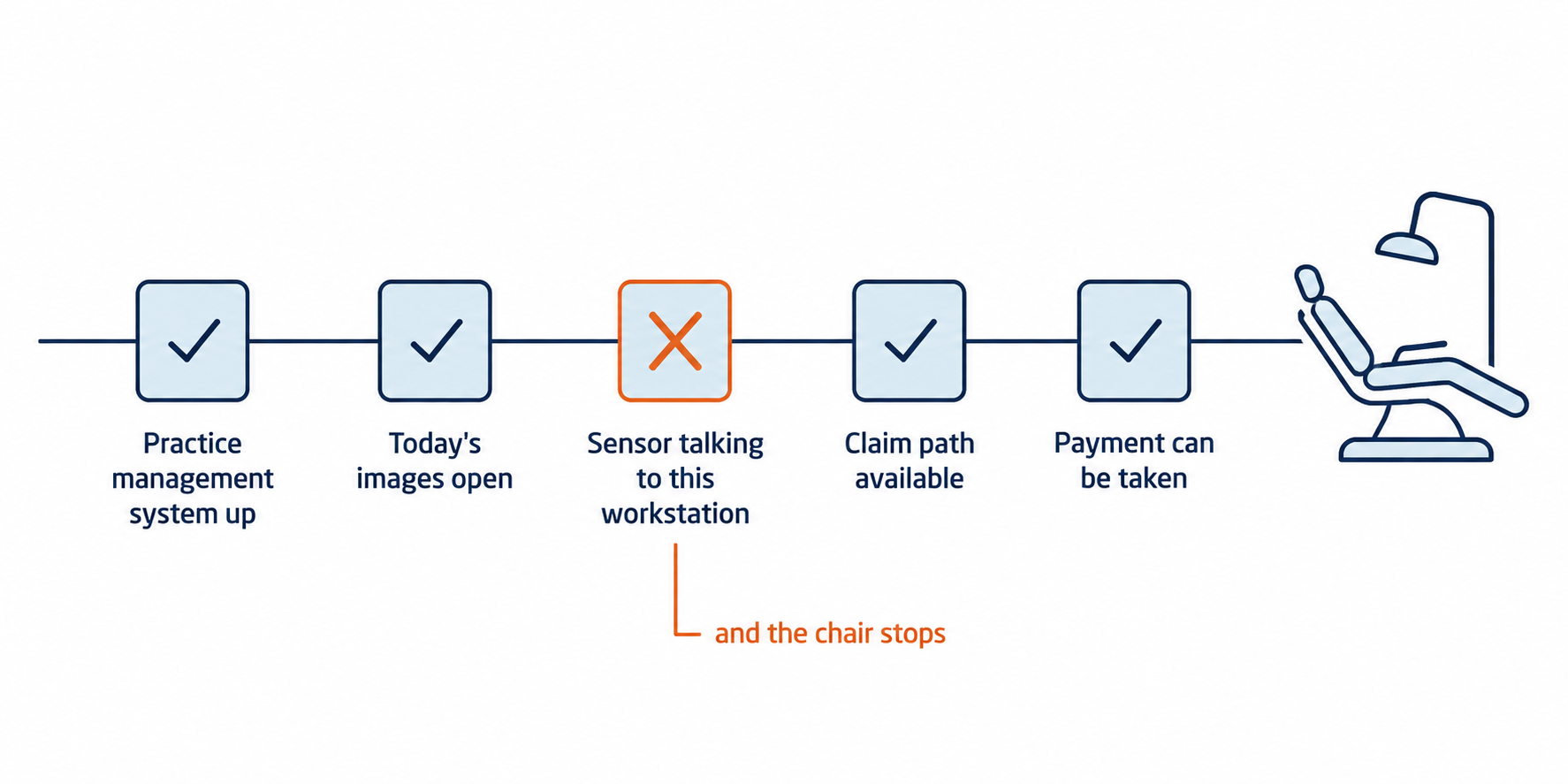

Five things have to be true before a patient sits down in a dental surgery.

• The practice management system is up and today’s diary is loading.
• Today’s images open on the chairside screen.
• The sensor is talking to the workstation in that surgery.
• The claim path is available.
• The payment can be taken at the counter afterwards.

ACC, the Accident Compensation Corporation, funds treatment for dental injury and is claimed against from inside the practice management system. If ACC is unreachable during clinic hours the treatment still happens, but the claim goes into a pile for somebody to key in later.
Four of the five can be working and the appointment still stops. Nothing in a server alert describes a sensor that has bound itself to the wrong workstation.

How does a dental practice differ from a general medical practice?

A dental practice generates far more image data per patient. One appointment can produce a study set of several hundred megabytes, and those images are part of the clinical record in their own right.
Then there is the equipment. Each surgery holds an intraoral sensor, a chairside screen, sometimes a scanner, and a workstation the imaging vendor has specified down to the driver version. An intraoral sensor is the small digital plate that replaced X-ray film inside the mouth.
Ownership of a fault is murkier too. One provider fixes an office computer, while a chairside failure sits between the hardware supplier, the imaging vendor and the practice management vendor until somebody proves which one it belongs to.
The closest comparison already on this site is IT for veterinary practices, which meets the same shape of problem with practice management, digital imaging and bookings under one roof. Dentistry parts company with it over the size of the images and the length of time they have to be kept.

Why Does Dental Imaging Need Its Own Storage Plan?

Dental imaging needs its own storage plan because the studies are orders of magnitude larger than the notes and they are kept for far longer than most business records. Treat image storage as ordinary file storage and you run out of fast disk in the third year, then start deleting whatever looks safe.

How large is a dental imaging study?

Sizes vary by device and by settings, so take these as orders of magnitude. A single intraoral radiograph is a few megabytes. An orthopantomogram, the panoramic radiograph almost everyone calls an OPG, is larger again.
A cone beam computed tomography scan, or CBCT, is a three-dimensional volume and can run to hundreds of megabytes for one patient. Size the storage from the number of scans the practice takes in a year, because figures borrowed from ordinary document storage will be far too low.

What is DICOM and why does it matter to a practice owner?

DICOM stands for Digital Imaging and Communications in Medicine, and it is the file format medical imaging devices use to store and exchange studies. It matters commercially: a study held in DICOM can be read by another system, and a study locked in a proprietary format may not be.
The DICOM standard is maintained by the Medical Imaging and Technology Alliance. Ask any imaging vendor whether their studies export as DICOM before you sign anything, because the answer decides how hard it will be to change vendor later. Cone beam imaging forces the question most often, since a specialist will ask you to send the CBCT volume itself and a screenshot will not do.

How Long Does a Dental Practice Have to Keep Patient Images?

Ten years from the last encounter with the patient. Health Act regulations in New Zealand require health information held by providers to be retained for ten years from that date unless it is transferred to another provider or to the patient, and the Privacy Commissioner’s factsheet on storage, retention and disposal sets the position out.
The Health Information Privacy Code 2020 names dentists among the health agencies it covers. Its predecessor, the Health Information Privacy Code 1994, is still the name many owners search for.
For a child the clock runs long. A patient last treated aged eight and never seen again has to be kept, radiographs included, until they turn eighteen.
The images are health information, so the same period covers the study set and the note. Dental storage grows year on year and never turns over. The archive needs designing before it fills.

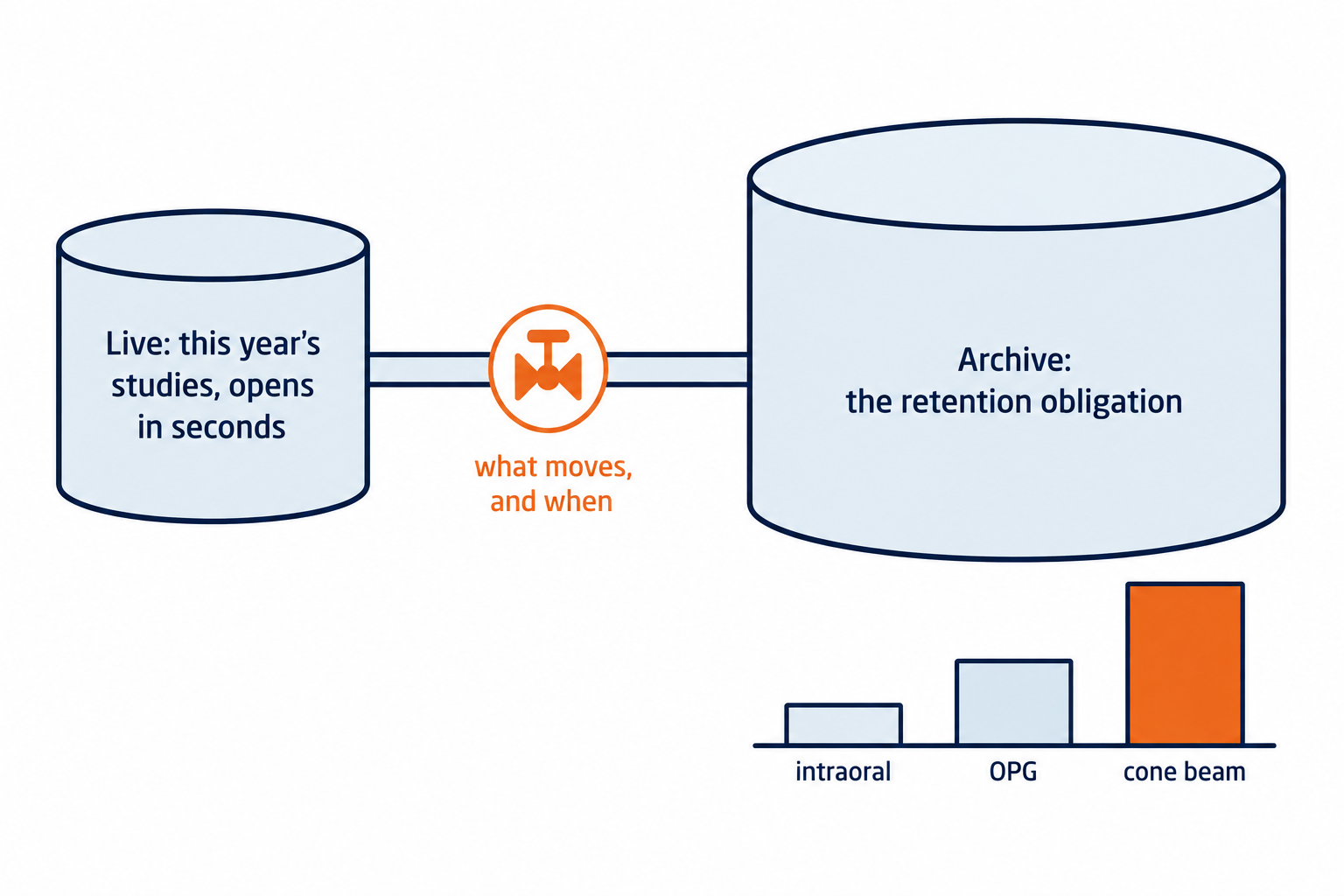

What is the difference between live storage and an archive?

Live storage holds the studies clinicians open in a normal week, sized so a study appears on the chairside screen in about two seconds. Everything older belongs in an archive, which still has to meet the retention obligation without having to be quick about it.
The split does more for the cost of IT for dental practices than any other single change, because it keeps the fast storage small enough to stay fast and cheap enough to replace. Practices that skip it buy expensive disk to hold radiographs nobody has opened since 2019.
Write the movement rule down, ideally inside a written data retention policy the practice can point to: what moves, at what age, who confirms it arrived, and how a study is retrieved when a patient returns after eight years.

When Can a Dental Practice Move Off Its Practice Server?

A dental practice can move off its practice server once the imaging application supports running without one, and not before. Dental practice management software is increasingly available as a hosted service, so the diary side of the move is straightforward and the imaging application decides the timing.
Owners hear that the cloud removes the server and assume the whole building can follow. The diary, the notes and the accounts can move on a Friday. The imaging application often cannot move until its vendor ships a version that supports it.

What does a vendor’s supported configuration restrict?

A supported configuration is the exact set of operating system versions, drivers, server roles and sometimes drive letters an imaging vendor will stand behind. Step outside it and the vendor can decline to help on the day a sensor stops working.
Ask both vendors in writing what they support before buying anything, and keep the answer on file with its date, because supported configurations change with every major release. Virtualise a server without asking and the imaging can be unsupported by Monday morning.

What belongs in the practice server’s replacement plan?

The warranty end date, the operating system end-of-support date and the date the imaging vendor stops supporting that version. Whichever falls first sets the replacement year, and the budget follows from there.
Put those dates in a document the owner reads, alongside the day-to-day technology the practice runs on. A server that fails without a replacement plan turns a maintenance job into a closed day.

Why Are Shared Surgery Logins a Problem?

Shared surgery logins remove the audit trail, so a practice cannot show who opened, changed or exported a patient record. They start as a convenience, because gloved hands and a fifteen-minute turnaround make individual logins feel slow.
The cost of that convenience turns up later. A staff member leaves and the shared password stays in use for months. A patient asks who viewed their record, and the honest answer is a room number.
Shared logins also hide ordinary mistakes. When a study is filed against the wrong patient, an individual account narrows the search to one person and one afternoon.

How should a practice handle logins in a treatment room?

Give every clinician an account of their own and remove the friction another way. Card taps, fingerprint readers and short session timeouts all preserve individual identity without asking gloved hands to type a password twenty times a day.
The mechanics of granting and removing access are covered in how access is granted and removed across a business. Practices skip this step in the treatment rooms more than anywhere else in the building.

Who else has access to the practice system?

The imaging vendor, the practice management vendor and often a hardware supplier all hold remote access. Each should have a named account, a reason for holding it and a review date.
Ask the practice manager to list every external party with a login. At least one account on that list normally belongs to a person who left the vendor years ago.

What Happens When Recall Reminders Stop Going Out?

Bookings fall about six weeks later, long after anyone would connect the two. Recall is the standing schedule of reminders that brings patients back for a check-up, and in a healthy practice it fills next quarter’s diary without anyone making a sales call.
In most practices nobody owns that messaging path, though the diary depends on it working.

What breaks a practice’s recall messaging?

Text credit runs out, a sender ID changes, an email domain starts failing authentication, or a software update severs the link between the practice management system and the messaging provider. None of those raise an alarm. The diary just looks thinner than expected.
Ask for a monthly count of messages sent, messages delivered and appointments booked from them. Without those figures the practice is guessing about its busiest booking channel.

What Does IT for Dental Practices Cost?

IT for dental practices costs a three-surgery practice roughly $11,000 to $14,000 a year once the one-off hardware is spread across its useful life. That figure covers support and monitoring, the imaging archive, and the share of a server and workstation refresh that lands in any single year.

Set that against the $18,400 the illustrative practice was already losing. Spreading $17,500 of hardware across four years is about $4,400 a year, the archive and its offsite copy about $2,200, and the step up from ad hoc support to a managed arrangement about $4,800, which totals about $11,400 a year.
The net is about $7,000 a year in the practice’s favour. The two outage half-days come back first, and none of it requires a new platform.

What makes a quote for dental practice IT support vary so much?

The number of surgeries, whether the practice keeps a server on site, and how much imaging it generates. A single-surgery practice with no CBCT sits at the bottom of every range above.
A quote that never names the imaging vendor has not been scoped. Ask for vendor liaison to be written into the agreement, because chairside faults stall while somebody waits for a vendor to call back.

What Are the First Steps for a Dental Practice Owner?

Measure the delay you already have, then fix the two lines that cost the most. None of the first four steps below needs a purchase order or a vendor visit.

1. Time it. Open three study sets at the chair with a stopwatch, one from this month and two from previous years.
2. List the five chairside dependencies and name who supports each one. Practices routinely find at least one with no owner.
3. Ask both software vendors, in writing, for their current supported configuration and their position on DICOM export.
4. Count the external accounts with access to the practice system and remove the ones nobody can justify.
5. Collect the three server dates: warranty end, operating system end of support, and imaging vendor support end.
6. Ask for last month’s recall figures, and price the archive before the server fills.

Steps one to four take an afternoon each and cost nothing but attention. Steps five and six decide whether next year’s hardware is a planned purchase or an emergency one.

Book a Dental Practice IT Review

Exodesk has supported South Island businesses since 1989 and works with clients across Canterbury, Otago and Southland from offices in Christchurch and Dunedin. We scope and support IT for dental practices, including the chairside workstation, the imaging archive and the vendor relationships behind both.
Contact us today to discuss how we can help your business or connect with us on LinkedIn to stay updated with more insights.

Frequently Asked Questions

What software does a dental practice need to run?
A dental practice runs two clinical systems: software that holds the diary, notes, recall list and accounts, and an imaging application that drives the sensor and shows studies on the chairside screen. Accounting and payment software usually sits alongside them at reception. Both clinical systems must be certified by their vendors to work with each other.
Do small single-surgery practices need managed IT support?
Yes, though the arrangement is smaller. A single-surgery practice still depends on one imaging chain and one diary, and it has no second workstation to fall back on. For a practice that size, a fast response when the chair stops matters more than the monthly hours in the agreement. Scale the agreement to one surgery and keep the response time.
Can dental images be stored in Microsoft 365 or a normal cloud drive?
No. Dental imaging applications expect a specific storage path and often a specific drive letter, and syncing a live imaging folder to a general-purpose cloud drive can corrupt studies. Use storage the imaging vendor supports for the live path. A second copy can then be held in cloud storage as the archive, provided the export format is one the practice can read back.
How long does a dentist have to keep X-rays in New Zealand?
Ten years from the last encounter with the patient, under Health Act regulations, unless the records are transferred to another provider or to the patient. Radiographs and scans count as health information, so that period applies to them in the same way it applies to written notes.
What happens to patient records if a dental practice is sold?
Patient records transfer with the practice to the incoming owner, who takes on the retention obligation from settlement onwards. The sale agreement should name who holds the imaging archive and who pays to keep it accessible. Confirm the imaging vendor will licence the new entity before settlement, because an archive cannot be read without the application that wrote it.
Can a dental practice run entirely without on-site hardware?
No. Even a practice with hosted software still has an intraoral sensor, a chairside workstation, a switch and a network in every surgery, and all of those are physical. A practice can retire the general-purpose file and image server and keep the rest.
What is an OPG and how big is the file?
An OPG, or orthopantomogram, is the panoramic radiograph that captures the whole jaw in a single image. File sizes depend on the machine and its settings. An OPG sits between a single intraoral radiograph and a cone beam volume in size, so a practice should size its storage from its own machine’s output over a typical month.
Can Exodesk work with our existing dental software vendor?
Yes. Exodesk supports the network, servers, workstations and storage that dental applications run on, coordinates with the practice management and imaging vendors when a fault crosses the boundary between systems, and leaves the application itself with its vendor.
How do we stop the practice diary going offline?
Give the practice management system a second path to the internet if it is hosted, or a tested restore if it runs on site. Most diary outages in small practices trace back to a single failed component with no spare: one switch, one server disk or one internet connection. Identify the component with no backup and price a spare for it before it fails. A spare switch on a shelf costs less than one closed morning.
What should a dental practice ask a new IT provider?
Ask which dental imaging and practice management products the provider has supported before, what response time applies when a surgery is down, and who contacts the software vendor when a fault crosses between systems. Ask for the name of another practice the provider supports. A provider with no dental experience will be learning on your chair time, and chair time is the most expensive hour in the building.
Is patient data safe if the practice uses a cloud imaging service?
Yes, when the service is chosen with the retention and access rules in mind. Ask where the studies are held, how a full copy is retrieved if the contract ends, and what format that copy arrives in.
Where do we start if the practice has never had an IT review?
Start by timing how long a study takes to open at the chair and listing the five systems an appointment depends on. Those two measurements show whether the problem is the workstation, the network or the imaging storage. Exodesk reviews IT for dental practices in Christchurch and Dunedin and returns a written plan with costs attached.
