Network Cabling: The Wired Backbone Your Office Needs

Your WiFi keeps dropping. Speeds crawl in the back rooms. Everyone blames the wireless.

Often the real culprit sits out of sight. Old, tangled, or undersized network cabling throttles the whole office, and no amount of new WiFi gear will fix a weak wired foundation underneath it.

This guide explains what network cabling is, why it matters for South Island businesses, and how to get it right the first time so your office runs on infrastructure you can trust.

What Is Network Cabling?

Network cabling is the wired infrastructure that moves data between the devices in your office and out to the internet. It includes the physical cables running through walls and ceilings, the patch panel and comms cabinet that terminate and organise those cables, and the switches that connect everything together.

Every desktop, VoIP phone, server, and wireless access point in your office relies on this wired layer. Even a fully wireless workplace still depends on cabling, because each access point must connect back to the network by cable to reach the internet.

It helps to picture the whole thing as the plumbing of your office technology. The taps and appliances get all the attention, but the pipes behind the walls decide whether water arrives reliably. Cabling plays the same role for data, carrying everything your business does online, and it is just as disruptive to fix badly after the fact.

Businesses often treat cabling as an afterthought once the more visible kit is chosen. Yet the wiring underneath determines how fast and how reliably everything on top performs. A well-planned Business WiFi network, for example, is only as good as the wired backbone feeding its access points.

The effect is easy to underestimate. When the wired layer is sound, staff barely think about it. When it is weak, the effects show up everywhere at once: slow file transfers, choppy video calls, and phones that cut out, all pointing back to a single root cause that is easy to overlook.

How Does Network Cabling Differ From WiFi?

Network cabling is the wired layer; WiFi is the wireless layer that sits on top of it. WiFi gives staff the freedom to move around, while cabling provides the stable, high-speed connection that wireless access points, desk phones, and fixed workstations depend on.

The two work together rather than competing. Wireless coverage fails or slows when the cabling behind it is undersized or poorly installed, so getting the wired foundation right is the first step to reliable connectivity everywhere else.

Wired connections also stay steady in ways wireless cannot always match. For a fixed desk running large files, a payment terminal, or a server, a cable delivers consistent speed with none of the interference that affects a shared wireless channel. Most offices end up using both, with cabling handling the fixed and critical connections and WiFi covering movement and personal devices.

What Are the Signs of Poor Network Cabling?

The clearest signs of poor network cabling are slow or inconsistent speeds, frequent dropouts on wired devices, and a comms cabinet full of unlabelled, tangled cables. These symptoms often get blamed on the internet connection or the WiFi when the wiring is the actual weak point.

Other warning signs include ports that no longer work, connections that drop when someone moves a cable, and no record of which cable runs where. In an older building, cabling installed years ago may only support a fraction of the speed your current equipment is capable of.

A tell-tale pattern is problems that seem to move around. One week it is the corner office, the next it is the meeting room, and nobody can pin down a cause. That inconsistency is often the wiring itself: a marginal cable or a loose termination that fails intermittently. Because the fault comes and goes, it gets written off as bad luck instead of a fixable infrastructure problem.

Most owners know the scene. A client video call freezes at the worst moment, someone reboots the router, it works for a while, and everyone moves on. The pattern repeats for months and nobody connects it to the cabling, because the cabling is invisible and the router is the thing you can see and touch. Meanwhile the actual fault sits in the wall, unchanged.

Cost creeps in as well. Staff lose minutes here and there waiting for files, retrying calls, and rebooting equipment that was never really the problem. Across a team, those minutes add up to real lost productivity every week, all traceable to a foundation that was never built to carry today’s load.

Cabling problems are easy to miss because the hardware around them looks modern. If your office is showing several of these symptoms alongside ageing equipment, it may be time for a broader review. Our guide on IT infrastructure sets out the wider signals that a technology upgrade is overdue.

Why Does Old Cabling Slow a Modern Office?

Old cabling slows a modern office because earlier cable grades cannot carry the data speeds that current devices and applications demand. A cable rated for a previous standard becomes a bottleneck that caps performance no matter how fast the internet connection or the switches are.

Damaged, kinked, or poorly terminated cables make the problem worse by introducing interference and errors. The result is a network that feels sluggish and unreliable for reasons that never show up on the equipment itself.

Upgrading the switch, the router, or the internet plan does nothing if the cable in the wall is the limit. This is why so many businesses spend on new equipment and see no improvement. The money goes into the visible layer while the real constraint sits untouched behind the plasterboard, holding everything back.

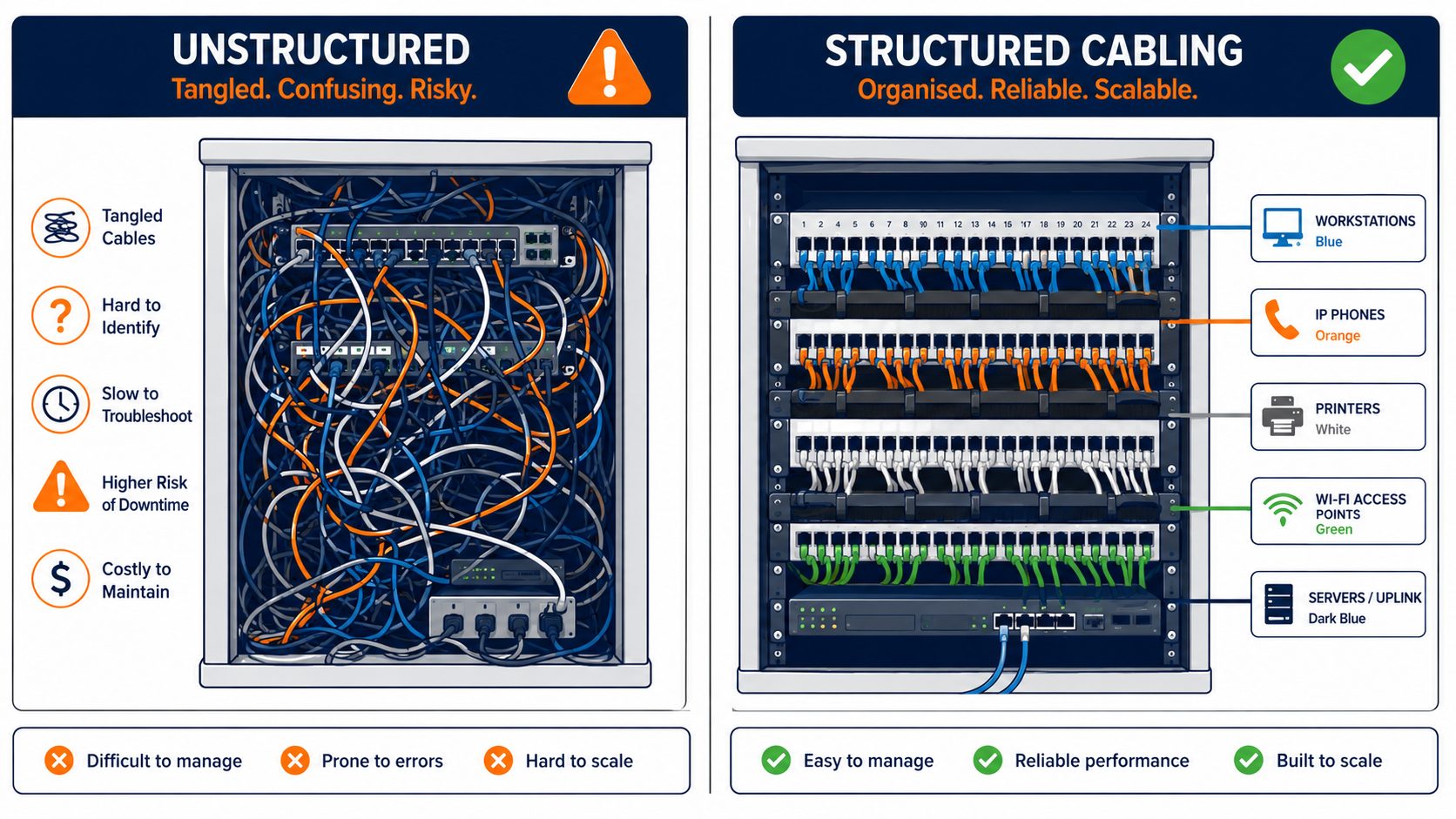

What Is Structured Cabling and Why It Matters

Structured cabling is a planned, standardised approach to network cabling where every cable run is documented, labelled, and terminated in an organised comms cabinet. It replaces ad hoc wiring with a tidy system that is easy to manage, troubleshoot, and expand. If the problems above sound familiar, this is the fix that stops them recurring.

The difference is stark in practice. Unstructured wiring grows one cable at a time until the cabinet becomes an unmanageable mess, while structured cabling follows a clear layout from the start. When something needs changing, a technician can identify the right cable in seconds rather than tracing a tangle by hand.

For a growing business, structured cabling pays off every time you add a desk, move a team, or diagnose a fault. It is the standard Exodesk works to on every job, designing the layout and handling the patching and comms-cabinet work while trusted cabling partners run the physical cable, so the finished network stays reliable and cheap to maintain over its whole life.

There is a safety and continuity angle too. When one person holds all the knowledge of an unlabelled cabinet in their head, the business is exposed the day they leave or are unavailable during an outage. A structured, documented system means any competent technician can step in and work confidently, which shortens downtime when it matters most.

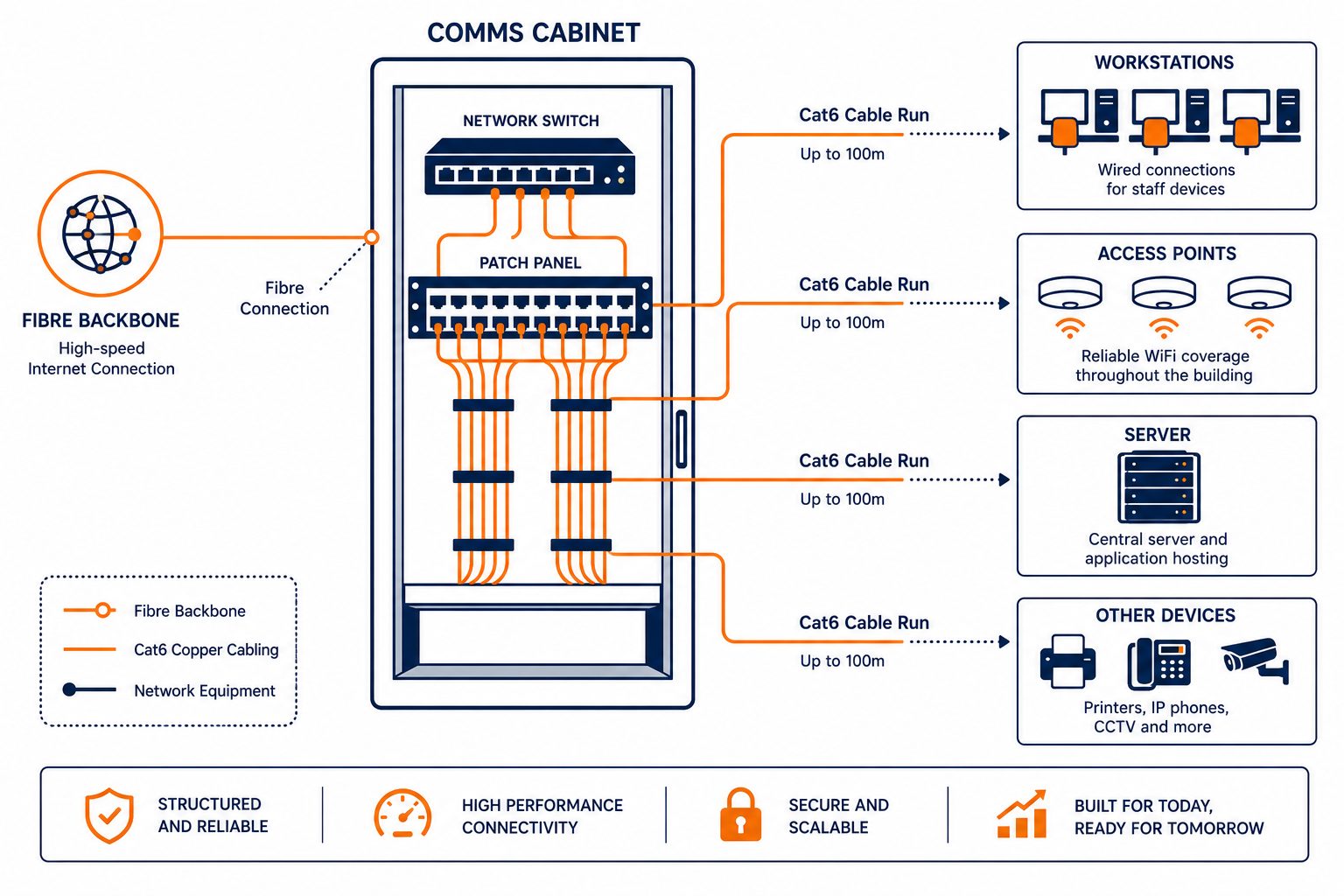

What Goes Into a Structured Cabling System?

A structured cabling system includes the cable runs from each work area, a patch panel that terminates those runs neatly, a comms cabinet that houses the panel and switches, and a fibre or copper backbone linking it all together. Each element is labelled and mapped so the whole system stays understandable.

Good documentation is a core part of the system. A clear record of what connects where turns future changes and fault-finding from guesswork into a quick, predictable task.

Cable management inside the cabinet matters as much as the runs themselves. Cables that are dressed, tied, and routed cleanly stay reliable and are easy to trace, while a bundle crammed in without order becomes fragile and almost impossible to work on safely. The tidy version costs a little more time at install and saves that time back many times over.

What Is a Patch Panel and a Comms Cabinet?

A patch panel is a mounted board where all the cable runs from around the office terminate in one organised place, and a comms cabinet is the enclosure that holds the patch panel, switches, and other network hardware securely. Together they form the central hub of a structured cabling system.

Keeping this hardware tidy and labelled inside a proper comms cabinet keeps the network easy to work on instead of fragile. A good cabinet also protects the equipment from dust, tampering, and accidental knocks.

A well-set-up comms cabinet also handles the practical essentials that keep hardware healthy: adequate ventilation so switches do not overheat, a clean and protected power supply, and enough spare capacity to grow into. Getting these basics right at the start avoids a cramped, overheating cabinet that becomes a problem in its own right.

Which Type of Network Cabling Does a Business Need?

Most modern offices are best served by Cat6 or Cat6a cabling for workstations and access points, with fibre used for the backbone that links cabinets or floors. The right choice depends on the speeds you need now and the headroom you want for the next several years.

Cat6 cabling supports high speeds over normal office distances and suits the vast majority of small and medium businesses. Cat6a extends that performance over longer runs and is worth considering where future-proofing matters. Fibre is used where large volumes of data travel between comms cabinets or between buildings on a site.

Choosing a cable grade with room to grow avoids a costly re-cable in a few years. The extra cost of a higher grade at install time is small compared with pulling new cable through a finished office later on.

The runs themselves also need to respect distance limits and stay clear of interference sources such as power cables and heavy machinery. A run that is too long or poorly routed will underperform even if the cable grade is right, which is why placement and installation quality matter as much as the product on the box.

Powering devices over the same cable is another consideration for modern offices. Access points, IP phones, and cameras can draw power directly through the network cable using Power over Ethernet, which removes the need for a separate power run to each device. Planning for this at the cabling stage keeps installations tidy and flexible.

Should You Choose Cat6 or Cat6a Cabling?

Choose Cat6 cabling for typical office runs where standard high-speed connectivity is enough, and Cat6a where you need higher speeds sustained over longer distances or want maximum headroom for the future. Both are a clear step up from older cable grades still found in many premises.

The best answer depends on your building, your run lengths, and how long you expect the cabling to last. A short site assessment settles the question quickly and prevents over-spending or under-provisioning.

When Should a Business Install or Upgrade Network Cabling?

The best time to install network cabling is during a new office fit-out, an office move, or a renovation, because cable can be run cleanly before walls and ceilings are closed up. Upgrading existing cabling makes sense when speeds no longer keep up or when the current wiring is undocumented and unreliable.

Moving premises is the ideal moment to get cabling right, since you are starting with a blank space. Our guide on office IT relocation covers how to plan the full move so the internet, phones, and network all work from day one in the new site.

If you are staying put but the network is holding you back, a re-cable can often be staged to minimise disruption. Cabling is a long-term investment: a quality install typically outlasts several generations of the equipment plugged into it.

Cutting corners at install time is a false economy. A cheap, undocumented job saves money once and then charges interest on it for years through outages, slow fault-finding, and awkward changes. A proper install costs a little more up front and then does its job without demanding attention, which is what you want from infrastructure.

How Do You Plan Cabling for a New Office?

Planning cabling for a new office starts with mapping where people, devices, and access points will sit, then designing cable runs, a comms cabinet location, and a backbone to serve them. Getting this right before the fit-out begins avoids expensive retrofitting once the space is finished.

It pays to plan for more than you need today. Adding a few extra points at each work area and leaving spare capacity in the cabinet costs little during a fit-out and saves a disruptive return visit when the team grows or the layout changes. Good planning looks ahead to how the office will run in five years, so the cabling supports the business as it expands.

A short review of your current setup and future plans gives a clear picture of what the new site needs. An IT assessment is a practical way to capture those requirements before any cable is pulled.

What Does a Professional Cabling Install Include?

A professional cabling install includes a site survey, a proper design, quality components, tidy termination and labelling, testing of every run, and clear documentation handed over at the end. Each of these steps protects the reliability and lifespan of the finished network.

Exodesk manages this whole process for you. We handle the design, the patching and termination, and the comms-cabinet work, and we bring in trusted cabling partners to run the physical cable through the building. You deal with one team that owns the outcome, rather than juggling separate trades yourself.

The site survey and design come first, mapping the building and the business needs so the layout suits how the office actually runs. Skipping this stage is where most poor installs go wrong, because the wiring ends up shaped by whatever was quickest on the day rather than by how people work.

Testing is the step that separates a professional job from an amateur one. Every finished run should be tested and certified to confirm it performs to the rated standard, not just that a light comes on at each end. A cable that seems to work can still be dropping data unnoticed, and only proper testing catches that before it becomes a mystery fault months later.

The handover documentation keeps the value of the install alive over time. A labelled cabinet, a floor plan of the runs, and a record of what connects where mean the next change, fault, or expansion is straightforward for any technician. Without it, even a perfect install slowly becomes another undocumented tangle.

How Much Does Network Cabling Cost?

The cost of cabling depends on the size of the office, the number of points, the cable grade, and how easy the building is to run cable through. A small office fit-out is a modest one-off cost, while a large or complex site with fibre backbone and many points costs more.

The more useful way to think about it is cost over the life of the install. Spread across the decade or more that quality cabling lasts, the annual cost is small, and it is repaid many times over in avoided downtime, faster fault-finding, and cheaper changes. The expensive option is almost always the cheap install that has to be redone.

Get Reliable Network Cabling for Your South Island Office

Exodesk designs and manages tidy, documented structured cabling for managed IT clients across Christchurch, Dunedin, and the wider South Island, handling the patching and comms-cabinet work and coordinating trusted cabling partners for the physical fit-out, so your office gets a wired backbone it can rely on for years.

Contact us today to discuss how we can help your business or connect with us on LinkedIn to stay updated with more insights.

Frequently Asked Questions

What is network cabling?

Network cabling refers to the fixed wired system that moves information between office equipment and the wider internet. Think of the leads hidden in walls and ceilings, the board and enclosure where those leads are tidied and joined, and the switches tying them into one whole. Desktops, phones, servers, and wireless points all lean on this hidden layer to do their jobs.

Why is my office WiFi slow if the problem is cabling?

Wireless access points connect back to the network by cable, so weak or outdated cabling limits how much data reaches them. When the wired backbone cannot keep up, the WiFi feeding off it slows and drops even if the access points themselves are modern. Fixing the cabling underneath often resolves wireless problems that new WiFi gear cannot.

What is structured cabling?

Structured cabling is a planned, standardised way of wiring an office where every cable run is labelled, documented, and terminated in an organised comms cabinet. It replaces ad hoc wiring that grows one cable at a time with a tidy, manageable system. This makes faults easier to find and future changes far quicker to carry out.

What type of network cable should a business use?

Most businesses should use Cat6 or Cat6a cabling for workstations and access points, with fibre for the backbone linking cabinets or floors. Cat6 suits typical office runs, while Cat6a offers more headroom over longer distances. Choosing a grade with room to grow avoids a costly re-cable within a few years.

What is the difference between Cat6 and Cat6a cabling?

Cat6 cabling supports high speeds over standard office distances and covers the needs of most small and medium businesses. Cat6a sustains higher speeds over longer runs and provides more future-proofing. The right choice depends on your building layout, run lengths, and how long the cabling needs to last.

What is a patch panel and a comms cabinet?

A patch panel is a mounted board where all the cable runs from around the office terminate in one organised place. A comms cabinet is the enclosure that houses the patch panel, switches, and other network hardware securely. Together they form the central, tidy hub of a structured cabling system.

How long does network cabling last?

Quality network cabling installed to a proper standard typically lasts well over a decade and outlives several generations of the equipment plugged into it. The main reason to replace it earlier is a jump in speed requirements that an older cable grade cannot meet. Treating cabling as a long-term investment usually delivers the best value.

When is the best time to install network cabling?

The best time to install network cabling is during a new office fit-out, a move to new premises, or a renovation, when cable can be run cleanly before walls and ceilings are closed up. Installing at this stage is far cheaper and tidier than retrofitting a finished space. It also lets the whole design be planned around where people and devices will sit.

Can network cabling be upgraded without disrupting the office?

In most cases a cabling upgrade can be staged to keep disruption to a minimum, often working outside busy hours or one area at a time. A clear plan and a proper site survey make the process predictable. Exodesk scopes each upgrade around how the business operates so trading and staff productivity are protected.

Does Exodesk manage network cabling in Christchurch and Dunedin?

Yes, Exodesk designs and manages structured network cabling for businesses across Christchurch, Dunedin, and the wider South Island. Exodesk handles the design, the patching and termination, and the comms-cabinet work, and coordinates trusted cabling partners to run the physical cable for fit-outs, moves, and upgrades. This means one team owns the result and you deal with a single point of contact. Exodesk has supported South Island businesses since 1989.
